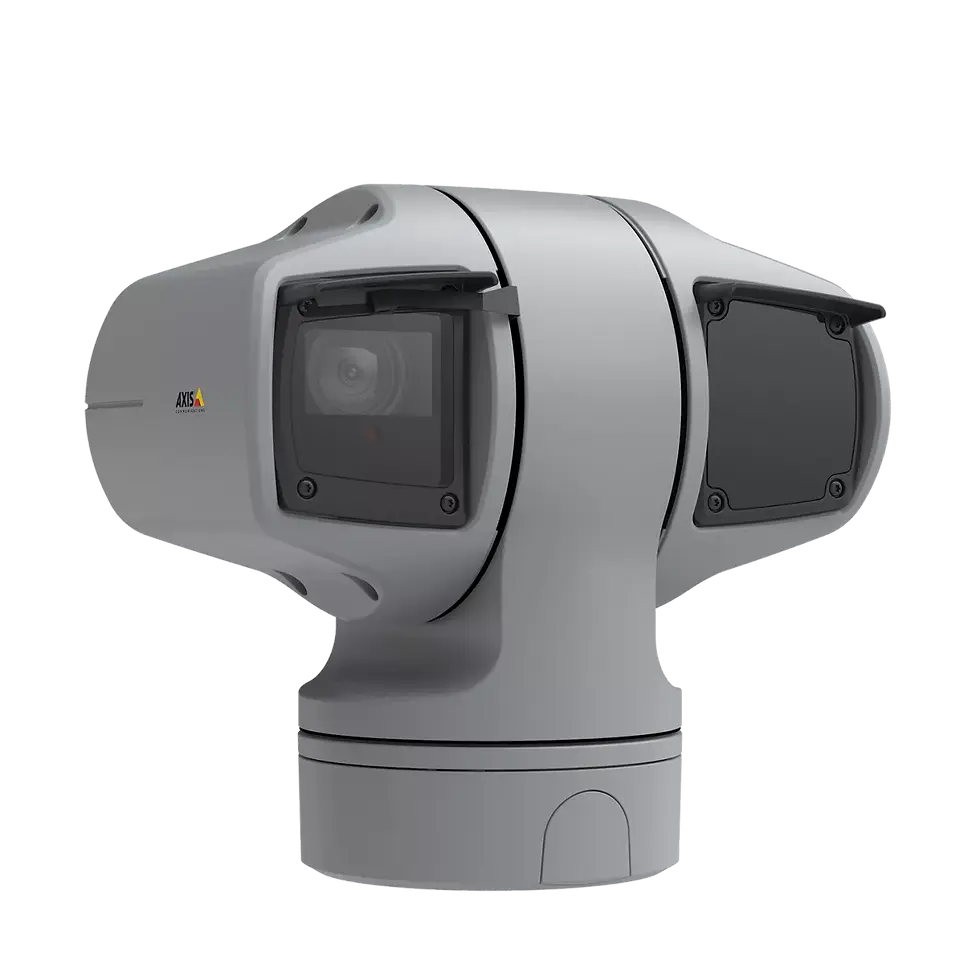

AXIS Q6215-LE PTZ 50HZ Network Camera 01083-002
Heavy-duty PTZ camera with OptimizedIR
AXIS Q6215-LE PTZ Network Camera has a ½-inch sensor and combines great image quality with fast panning, tilting,
and zooming. Its powerful, built-in IR illumination allows for an impressive viewing range in total darkness (up to
400 m or 1300 ft). This camera is ideal for open-area surveillance, since its robust design can withstand the toughest
weather conditions, including wind speed up to 245 km/h (150 mph). AXIS Q6215-LE is compliant with IP66, IP68, IK10,
and NEMA 4X. It can be mounted facing up or down and comes equipped with a wiper to remove excess water, rain, or
snow.

Specifications:
- Camera
Image sensor:
1/1.9" progressive scan RGB CMOS
Lens:
Zoom lens, 6.7–201 mm, F1.6–5.3
Horizontal field of view: 58.6°–2.2°
Vertical field of view: 34.1°–1.2°
Autofocus, automatic day/night
Day and night: Automatically removable infrared-cut filter
Minimum illumination:
Color: 0.07 lux at 30 IRE F1.6
B/W: 0.008 lux at 30 IRE F1.6, 0 lux with built-in IR illumination
Color: 0.1 lux at 50 IRE F1.6
B/W: 0.01 lux at 50 IRE F1.6, 0 lux with built-in IR illumination
Shutter speed: 1/30000 s to 1/6 s
Pan/Tilt/Zoom:
Pan: 360° endless, 0.05°/s to 150°/s
Tilt: -90° to +90°, 0.05°/s to 150°/s
Zoom: 30x optical zoom, 21x digital zoom
Preset accuracy: 0.10°
256 preset positions, tour recording, guard tour, control queue, orientation aid PTZ
- System on chip (SoC)
Model ARTPEC-6
Memory 1024 MB RAM, 512 MB Flash
- Video
Video compression:
H.264 (MPEG-4 Part 10/AVC), H.264 Main, High and
Baseline Profiles
Motion JPEG
Resolution 1920x1080 HDTV 1080p to 320×180
Frame rate Up to 60/50 fps (60/50 Hz) in all resolutions
Video streaming Multiple, individually configurable streams in H.264 and
Motion JPEG
Axis Zipstream technology in H.264
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264
Image settings: Saturation, brightness, sharpness, noise reduction, WDR –
up to 110 dB depending on scene, white balance, day-night
shift priority, exposure mode, manual shutter time, defogging,
backlight compensation, highlight compensation, compression,
fine tuning of low-light behavior, text and image overlay, privacy
masks, electronic image stabilization (EIS)

- Audio
Audio Input: Input through portcast technology
Audio Output: Output through portcast technology
- Network
Security: Password protection, IP address filtering, HTTPSb
encryption,
IEEE 802.1x (EAP-TLS)b
network access control, digest
authentication, user access log, centralized certificate
management, brute force delay protection
Network Protocols: IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSb
, TLSb
, QoS Layer
3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®
,
SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP,
RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,
ARP, SSH, LLDP, NTCIP, CDP, MQTT v3.1.1, Secure syslog (RFC
3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

General
Cybersecurity: Signed firmware
Casing: IP66-, IP68-, NEMA 4X- and IK10-rated aluminum casing
Color: urban grey NCS S 5502–B
Wiper included (silicone wiper blade)
Sustainability: PVC free
Power:
High PoE 90 W midspan 1–port: 100–240 V AC, max 1.35 A
IEEE 802.3bt Type 4 Class 8
Camera consumption: typical 25 W, max 71 W
Connectors: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE, Audio: Audio and I/O connectivity via portcast technology.
IR illumination: OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 400 m (1300 ft) or more depending on the scene
Storage:
Support for SD/SDHC/SDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Recording to network-attached storage (NAS)
For SD card and NAS recommendations, see axis.com
Operating conditions:
-50 °C to 55 °C (-58 °F to 131 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
(165 °F)
Arctic Temperature Control: Start-up as low as -40 °C (-40 °F)
Humidity 10–100% RH (condensing)
Wind speed (sustained): 68 m/s (245 km/h, 150 mph)

Storage conditions: -40 °C to 65 °C (-40 °F to 149 °F)
Dimensions: 210 x 330 x 313 mm (4 5/16 x 13 x 12 5/16 in)
Effective Projected Area (EPA): 0.071 m2
Weight: 8.7 kg (19.3 lb)
