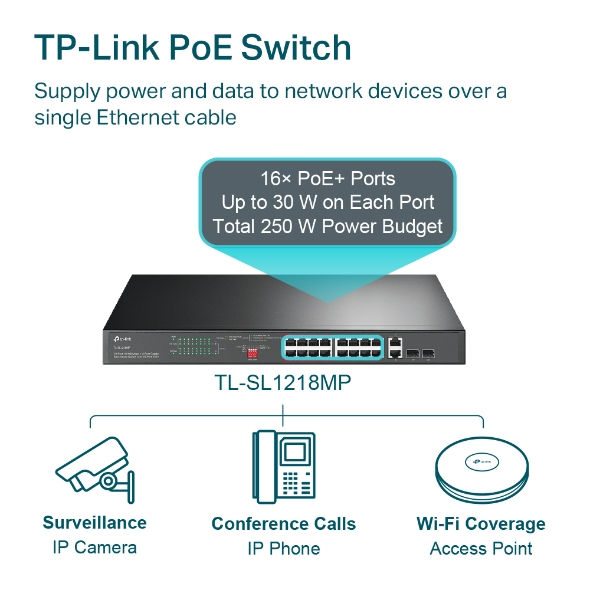

tp-link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ TL-SL1218MP
Plug and Play with PoE Transmission for Surveillance up to 250 m

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Ideal for IP Surveillance Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP camera deployment in large areas.

Ideal for IP Surveillance, Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storms, improving LAN security and data transmission.

Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 16× HD IP cameras are working simultaneously.

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SL1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Features
16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.*
Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
Isolation Mode allows one-click client traffic separation for higher security and performance.
Easy to use, with no configuration and installation needed.

Specifications
Brand: TP-Link
Model: TL-SL1218MP
Type: Switch
Interface: 16x 10/100Mbps PoE Ports + 2x Gigabit Uplink Ports + 2x Combo Gigabit SFP Ports
PoE Power: 250W
PoE Standards: 802.3at/802.3af
Switching Capacity: 7.2Gbps
Packet Forwarding Rate: 5.36Mpps
Power Consumption: 14.97W (No PD Connected) - 285.8W (With 250W PD Connected)
Power Supply: 100-240VAC, 50/60Hz
Operating Temperature: 0 °C-50 °C (32 °F-122 °F)
Operating Humidity: 10%-90% RH Non-Condensing
Dimensions: 440 × 180 × 44 mm
